| Imagen | Modelo | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Grand 32-17 | 32 | 5 | 12.5 | 17 | 220~240 | 50/60 | 350 | 180 | G 1 1/2 |
 |
Basic 32-4S | 32 | 1.8 | 2.6 | 4 | 115/230 | 50/60 | 65/50/32 | 180 | G2 |
 |
Basic 32-5S | 32 | 2.5 | 2.8 | 5 | 115/230 | 50/60 | 85/60/40 | 180 | G2 |
 |

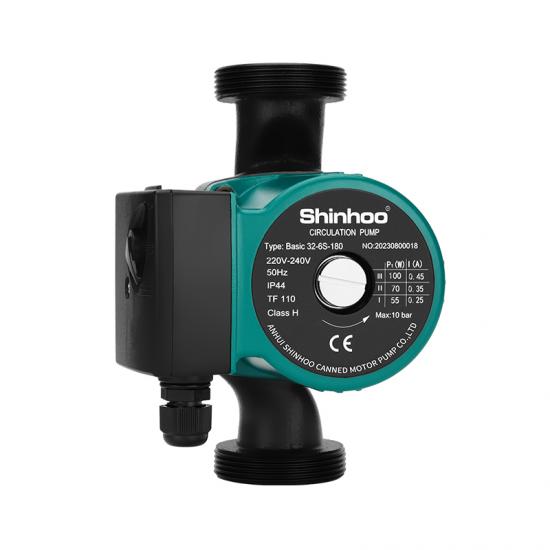

Basic 32-6S | 32 | 2 | 3.5 | 6 | 115/230 | 50/60 | 100/70/55 | 180 | G2 |
 |
Basic 20-7S Pro | 20 | 3.5 | 4.7 | 7 | 220~240 | 50 | 140/115/70 | 130 | G1 |
 |

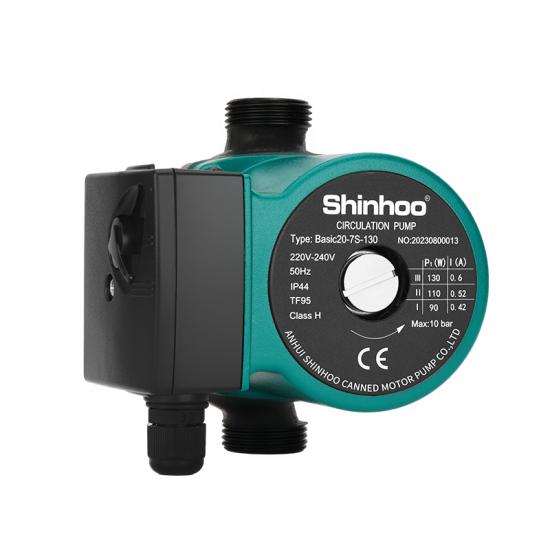

Basic 20-7S | 20 | 2 | 4.2 | 6.5 | 115/230 | 50/60 | 130/110/90 | 130/150 | G1 |
 |
Basic 32-12F | 40 | 6 | 8 | 12 | 115/230 | 50/60 | 500 | 220 | G2/Flange |
 |
Basic 32-12 | 32 | 6 | 8 | 12 | 115/230 | 50/60 | 500 | 180 | G2/Flange |
