Imagen | Modelo | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
---|---|---|---|---|---|---|---|---|---|---|
Classic S 32-5 | 32 | 2 | 2.4 | 5 | 230 | 50/60 | 32 | 180 | G2 | |

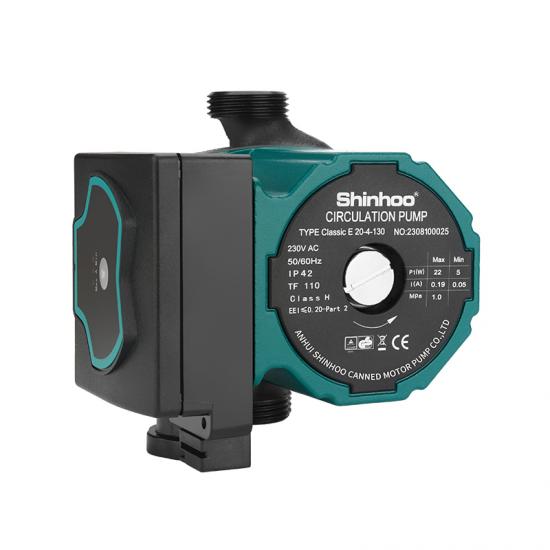

Classic E 20-4 | 20 | 1.5 | 2 | 4 | 230 | 50/60 | 22 | 130 | G1 | |
Classic 25-5 | 25 | 2 | 2.4 | 5 | 230 | 50/60 | 32 | 130/180 | G1 1/2 | |
Basic T40-12F | 40 | 8 | 10 | 14 | 220~240 | 50 | 700 | 304 | Flanged | |
PUN-401 | 25 | 3 | 15 | 21 | 220 | 50 | 660 | 283 | G1 | |
PUN-1100 | 50 | 13 | 15 | 23 | 220 | 50 | 1500 | 385 | G2 | |
PH-251 | 65 | 11 | 4 | 7.5 | 220 | 50 | 410 | 290 | G2 1/2 | |
PH-253 | 50 | 11 | 4 | 7.5 | 220 | 50 | 400 | 290 | G2 |
