| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Basic 32-12S Pro | 32 | 6 | 8 | 12 | 230 | 50 | 500 | 180/220 | G2- G1 1/2 or G2- G1 1/4 |
 |
Basic 32-12SF Pro | 32 | 6 | 8 | 12 | 230 | 50 | 500 | 220 | DN32 – G2 |
 |
Basic 32-9SF Pro | 32 | 5 | 6.5 | 9 | 230 | 50 | 300 | 220 | DN32 – G2 |
|
Basic 32-9S Pro | 32 | 5 | 6.5 | 9 | 230 | 50 | 300 | 180/220 | G2- G1 1/2 or G2- G1 1/4 |
|
Basic 25-12S Pro | 25 | 3.5 | 9 | 12 | 230 | 50 | 300 | 200 | G1 1/2-G1 |
|
Basic 25-9S Pro | 25 | 5 | 5 | 9 | 230 | 50 | 300 | 180/200 | G1 1/2- G1 or G1 1/4- G1 |
 |

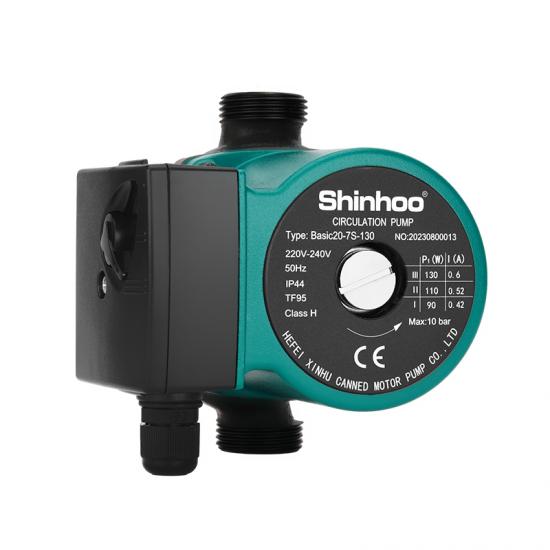

Basic 20-7S Pro | 20 | 3.5 | 4.7 | 7 | 220~240 | 50 | 140/115/70 | 130 | G1 |
 |
Basic 32-7S Pro | 32 | 5.3 | 2.5 | 7 | 220~240 | 50 | 140/115/70 | 180 | G2 |
 |
Basic 40-12F Pro | 40 | 8 | 10 | 14 | 220~240 | 50 | 700 | 250 | DN40 |
 |
Basic 40-16F Pro | 40 | 8 | 13.5 | 18 | 220~240 | 50 | 1000 | 250 | DN40 |
 |
Basic 50-12F Pro | 50 | 16 | 8 | 12 | 220~240 | 50 | 1000 | 280 | DN50 |
 |
Basic 80-8SF Pro | 80 | 25 | 5 | 8 | 380 | 50 | 1000 | 360 | Flange |
 |
Basic 40-12SF Pro | 40 | 8 | 10 | 12 | 230/380 | 50 | 700 | 250 | DN40 |
 |
Basic 65-8SF Pro | 65 | 20 | 4.2 | 8.4 | 380 | 50 | 700 | 340 | DN65 |
 |
Basic 40-16SF Pro | 40 | 8 | 15 | 18 | 230/380 | 50 | 1000 | 250 | DN40 |
 |
Basic 50-12SF Pro | 50 | 15 | 9 | 12 | 230/380 | 50 | 1000 | 280 | DN50 |
 |
Basic 80-10SF Pro | 80 | 25 | 8 | 10 | 380 | 50 | 1300 | 360 | DN80 |
 |
Basic 50-16SF Pro | 50 | 16 | 12 | 16 | 380 | 50 | 1300 | 280 | DN50 |
 |
Basic 50-20SF Pro | 50 | 16 | 13.7 | 20 | 380 | 50 | 1500 | 280 | DN50 |
 |
Basic 65-15SF Pro | 65 | 20 | 12 | 15 | 380 | 50 | 1500 | 340 | DN65 |
|
Basic 65-12SF Pro | 65 | 20 | 10.7 | 13 | 380 | 50 | 1300 | 340 | DN65 |
 |
Basic 80-12SF Pro | 80 | 25 | 10 | 12 | 380 | 50 | 1500 | 360 | DN80 |
 |
Basic 65-18SF Pro | 65 | 37 | 24 | 17.5 | 380 | 50 | 1800 | 340 | Flange |
