| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

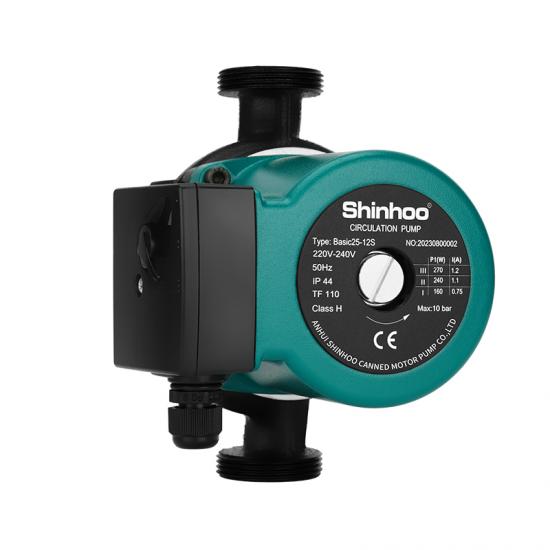

Basic 25-12S | 25 | 2 | 9.5 | 12 | 115/230 | 50/60 | 270/240/160 | 180 | G1 1/2 |
 |

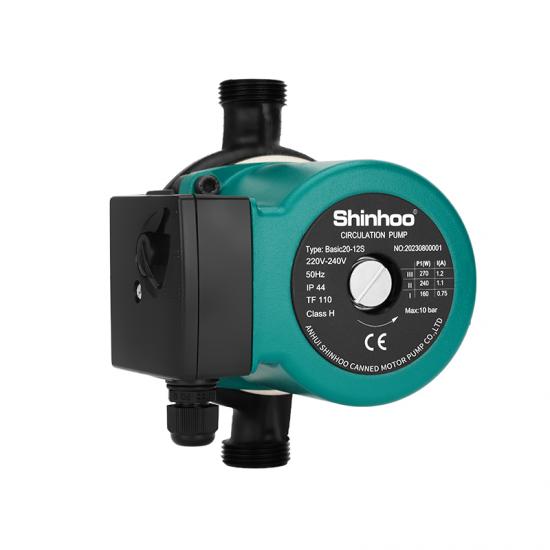

Basic 20-12S | 20 | 2 | 9.5 | 12 | 115/230 | 50/60 | 270/240/160 | 150/180 | G1 |
 |
Basic 25-12 | 25 | 5 | 9 | 12 | 115/230 | 50/60 | 500 | 180/220 | G1 1/2 |
 |

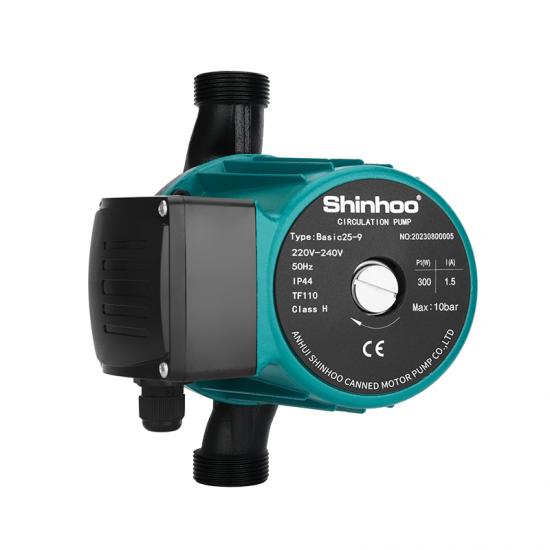

Basic 25-9 | 25 | 5 | 5 | 9 | 115/230 | 50/60 | 300 | 180/220 | G1 1/2 |
 |
Basic 32-9F | 32 | 5 | 6.5 | 9 | 115/230 | 50/60 | 300 | 180/220 | G2 |
 |
Basic 32-9 | 32 | 5 | 6.5 | 9 | 115/230 | 50/60 | 300 | 180/220 | G2 |
 |
Basic 32-12 | 32 | 6 | 8 | 12 | 115/230 | 50/60 | 500 | 180 | G2/Flange |
 |
Basic 25-16 | 25 | 7 | 12.5 | 16 | 230 | 50/60 | 700 | 230 | G1 1/2 |
 |
Basic 32-16 | 32 | 7 | 12.5 | 16 | 230 | 50/60 | 700 | 230 | G2 |
 |
Basic 25-20 | 25 | 9 | 14 | 20 | 230 | 50/60 | 1000 | 230 | G1 1/2 |
 |
Basic 32-20 | 32 | 9 | 14 | 20 | 230 | 50/60 | 1000 | 230 | G2 |
 |
Basic 25-16S | 25 | 7 | 12.5 | 16 | 380 | 50 | 700 | 230 | G1 1/2 |
 |
Basic 40-6F | 40 | 12.5 | 4.5 | 6 | 230 | 50 | 500 | / | / |
 |
SPA15-12E | 15 | 0.3 | 11 | 12 | 24 | 50/60 | 45 | 90 | G 1/2 |
 |
AHM-803T | 40/32 | 8 | 28 | 35 | 380 | 50 | 1350 | 410 | Rp1 1/2- Rp1 1/4 |
 |
GPD 40-7.5SFC | 44 | 26 | 110 | 60 | 245 | 8 1/2 | Flanged | ||
 |
GPD 40-4SFC | 62 | 14 | 110 | 60 | 245 | 8 1/2 | Flanged | ||
 |
Mega 25-8 | 20 | 26 | 110/230 | 60 | 130 | 6 1/2 | Threaded | ||
 |
Mega 25-10 | 20 | 32 | 110/230 | 60 | 185 | 6 1/2 | Threaded | ||
 |
Mega 32-8 | 28 | 26 | 110/230 | 60 | 185 | 6 1/2 | Threaded | ||
 |
Mega 32-10 | 37 | 32 | 110/230 | 60 | 185 | 6 1/2 | Threaded | ||
 |
Mega 40-8F | 66 | 26 | 110/230 | 60 | 130 | 8 9/16 | Flanged | ||
 |
Mega 40-10F | 28 | 32 | 110/230 | 60 | 185 | 8 9/16 | Flanged | ||
 |
Promo 15-12A | 12 | 39 | 110 | 60 | 270 | 7 7/8 | Threaded | ||
 |
Promo 15-9A | 6.6 | 29 | 110 | 60 | 120 | 6 5/16 | Threaded | ||
 |
SPA 15-12E | 6.6 | 39 | 110 | 60 | 60 | 13 7/16 | Threaded | ||
 |
GPA 15-6F | 14 | 19 | 110 | 60 | 45 | 6 1/2 | Flanged | ||
 |
GPD 25-12U | 19 | 38 | 110 | 60 | 230 | 7 1/16 | 1 1/4 | ||
 |
GPD 25-7.5SFC | 27 | 27 | 110 | 60 | 185 | 6 1/2 | Flanged | ||
 |
GPD 15-4SFRC | 17.5 | 15.5 | 110 | 60 | 85 | 6 1/2 | Flng-R |
