| Imagen | Modelo | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Classic 25-7.5 | 25 | 2.5 | 4.5 | 7.5 | 230 | 50/60 | 70 | 130/180 | G1 1/2 |
 |
Master 25-4 | 25 | 1.8 | 2 | 4 | 220~240 | 50/60 | 25 | 130/180 | G1 1/2 |
 |
Master 20-6 | 20 | 2 | 3.2 | 6 | 220~240 | 50/60 | 39 | 130 | G1 |
 |
Classic 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Basic 65-8F | 65 | 20 | 5 | 8 | 230 | 50/60 | 700 | 280/340 | DN65 |
 |
Basic 50-12F | 50 | 15 | 9 | 12 | 230 | 50/60 | 1000 | 280 | DN50 |
 |
Basic S 32-5S | 32 | / | / | 5 | 230 | 50 | 65/50/40 | 180 | G2 |
 |

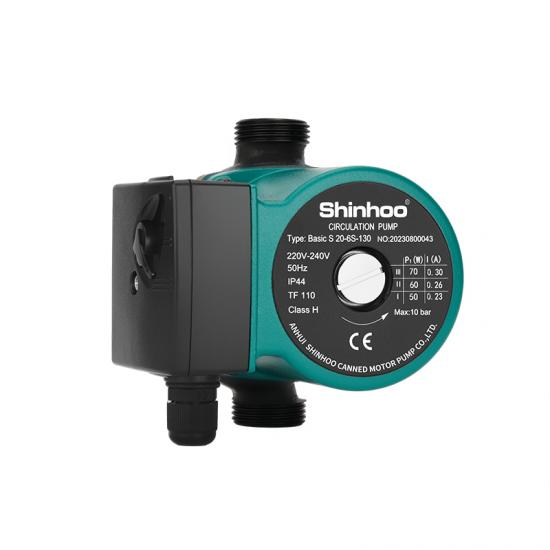

Basic S 20-7S | 20 | / | / | 6.5 | 230 | 50 | 100/80/60 | 130 | G1 |
