| Imagen | Modelo | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

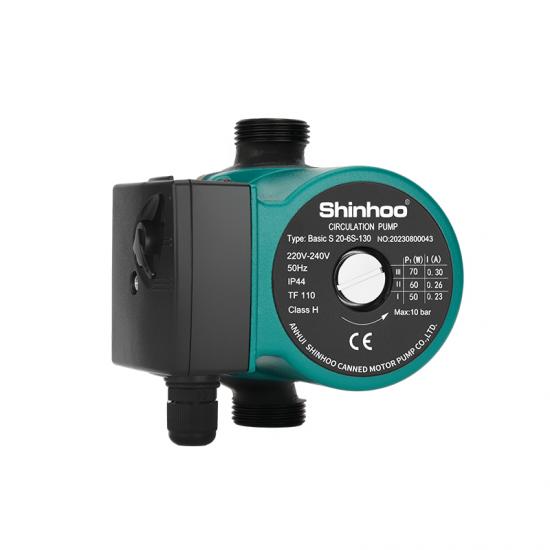

Basic S 20-7S | 20 | / | / | 6.5 | 230 | 50 | 100/80/60 | 130 | G1 |
 |
Basic S 25-7S | 25 | / | / | 6.5 | 230 | 50 | 100/80/60 | 130/180 | G1 1/2 |
 |
Basic S 32-7S | 32 | / | / | 6.5 | 230 | 50 | 100/80/60 | 180 | G2 |
 |
Basic S 25-8S | 25 | / | / | 8 | 230 | 50 | 180/175/130 | 180 | G1 1/2 |
 |
Basic S 32-8S | 32 | / | / | 8 | 230 | 50 | 180/175/130 | 180 | G2 |
 |
Basic 40-6F | 40 | 12.5 | 4.5 | 6 | 230 | 50 | 500 | / | / |
 |
SPA15-12E | 15 | 0.3 | 11 | 12 | 24 | 50/60 | 45 | 90 | G 1/2 |
 |
PFM 08-36 | 40 | 8 | 36 | 58 | 220 | 50 | 1800 | 280 | DN40 |
